| Product Discreption | Color | Thickness | Width | Surface | Weight |

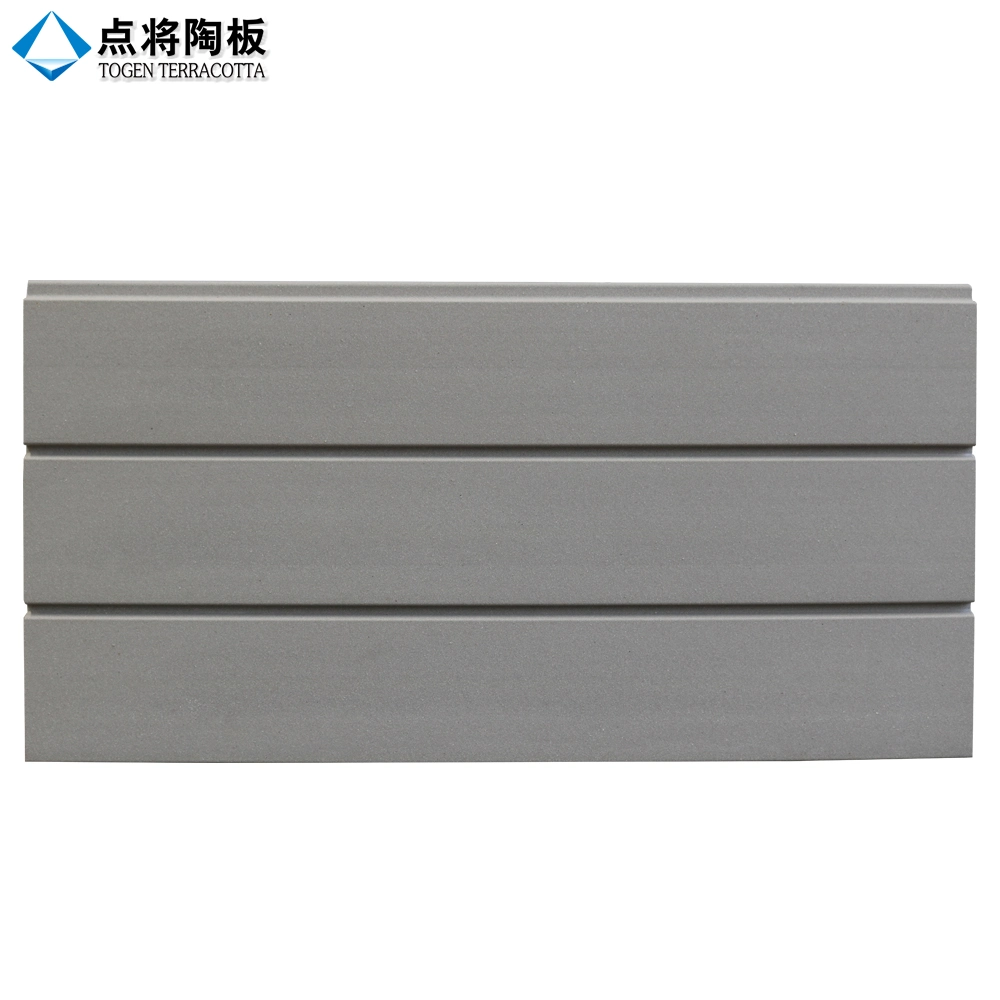

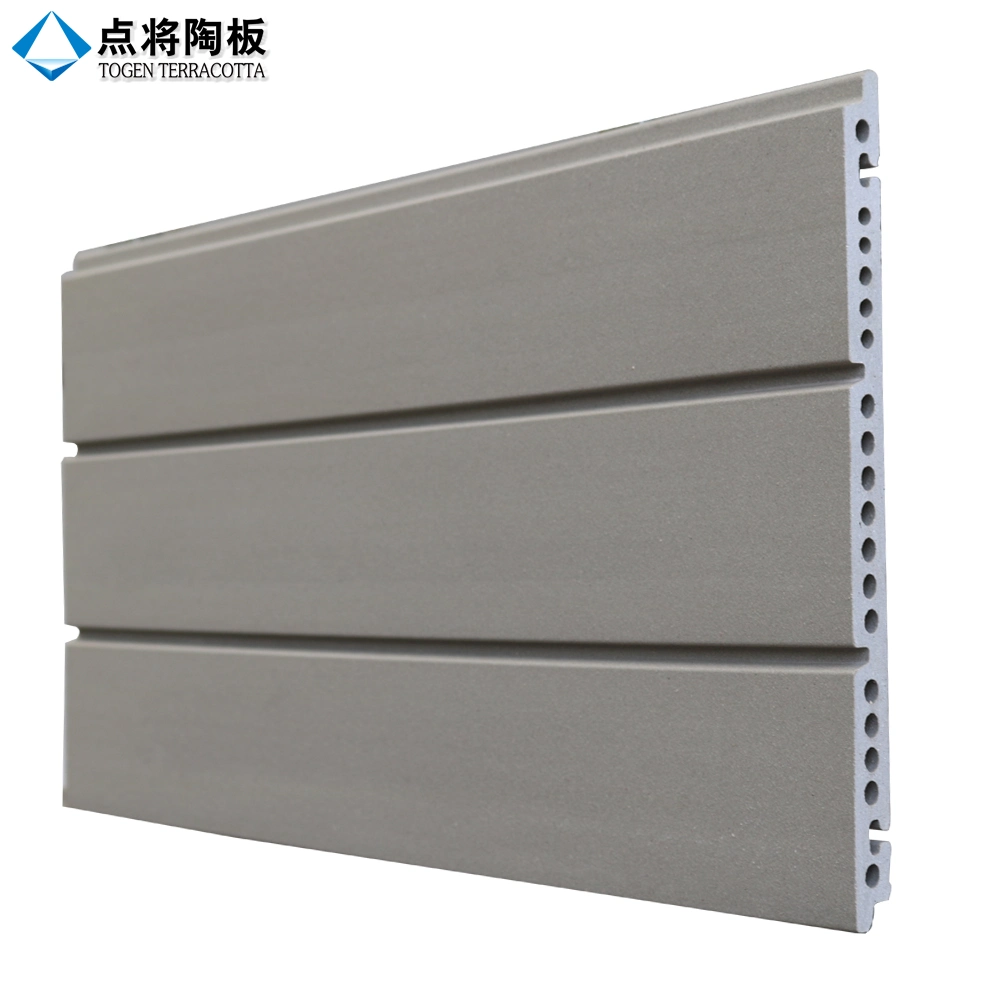

| Factory Price Exterior Terracotta Clading Panel Wall Terracotta Tiles with Hollow Structure | Grey | 18mm | 600mm | Groove | 31kg/m2 |
Color & Texture
We provide terracotta with installation accessories.We provide detailed design of terracotta facade.
Physical Terracotta Color Chat is available. Please kindly send the enquiry to us if you need it.
Terracotta Product Technical Parameter
| Performance Indicators | Technical Performance of Terracotta Products | GB | EN14411 | ||
| T18 terracotta panels | T30 terracotta panels | BO terracotta louver | |||
| Water Absorption | 3~6% | 3~6% | 3~6% | (I)3%-6% (II)6%-10% | (I)3%-6% (II)6%-10% |
| Dry Weight | 32kg/m2 | 46kg/m2 | 3kg/m | / | / |
| Frost Resistance | No damage after 100 freeze-thaw cycles | No damage after 100 freeze-thaw cycles | No damage after 100 freeze-thaw cycles | Tested value of the report | Tested value of the report |
| Breaking Strength | 3894N (300x1200mm) | 9184N (300x600mm | 23906N (50x50x1000mm | ≥750N | ≥750N |
| Modulus of Rupture | Avg.18.4 MPa, min.17.3 MPa (300x1200mm) | Avg.27.9MPa, min.25 MPa (300x1200mm) | Avg.14.3 MPa, min.18.0 MPa (50x50x1000mm) | Avg.≥9MPa Single value≥8MPa | Avg.≥9MPa Single value≥8MPa |
| Poisson's Ratio | 0.16 | 0.16 | 0.16 | / | / |
| Modulus of Elasticity | 33.4GPa | 33.4GPa | 33.4GPa | / | / |
| Fire Resistance | Level A1 | Level A1 | Level A1 | / | / |
| Resistance to Acid&Alkali | Level UA | Level UA | Level UA | Tested value of the report | Tested value of the report |
| Radioactivity | Class-A decorative material | Class-A decorative material | Class-A decorative material | / | / |
| Earthquake Resistance | Over 10 degrees | Over 10 degrees | / | / | / |
| Test under Simulated Wind Load | No breakage under 9kPa | No breakage under 10kPa | / | / | / |
| Sound Insulation | Noise reduction by over 9dB | Noise reduction by over 9dB | / | / | / |
| Heat Conductivity | 0.32w/m.k | 0.45w/m.k | / | / | / |
| Thermal Shock Resistance | No cracks | No cracks | No cracks | Tested value of the report | Tested value of the report |
| Fouling Resistance | Level 3 | Level 3 | Level 3 | Level 3 at least | Level 3 at least |
| Impact Resistance ( Coeffcient of Restitution) | 0.78 | 0.78 | 0.78 | Tested value of the report | Tested value of the report |
| Linear Coefficient of Thermal Expansion | 5.7×10-6 ºC -1 | 5.7×10-6 ºC -1 | 5.7×10-6 ºC -1 | Tested value of the report | Tested value of the report |
Installation Guides Details
Exhibiton
Packing & Delivery
Project Reference
Commercial Term
| Place of Origin | Xiamen, Fujian, China | ||
| Packing Details | Woodcase package with foam between two panels | ||
| Quality Standard | JG/T 324-2011, GB/T 27972-2011, EN14411 | ||
| MOQ | 300 square meters | ||
| Production capacity | 5,000 square meters per day | ||
| Sample Policy | Free Sample is available | ||
| Sample Leadtime | 7 days | ||
| Leadtime | Shipped in 30-45 days after payment | ||
| FOB Port | Xiamen, as your requested | ||
| Delivery Term | FOB/CIF | ||
| Payment Term | T/T, L/C, D/A, D/P, Western Union, Money Gram | ||
| Note: can be customized according to the given specifications and colors from clients. More requirements and specification, pls feel free to contact with us. | |||
FAQ
Q1: Is terracotta panel easy to install?
A1: Terracotta panel is extruded into precise profile which is ready to be installed. Neither notching nor other fabrication is need on job site.
Q2: How about heat insulation and sound resistance?
A2: Owing to the cavities inside the panels and that improves ghe performance of heat insulation and sound resistance.
Q3: Will the color of terracotta panel fade?
A3: No, the color of terracotta panel is made by different color clays. Terracotta panel's color is the same inside and outside. So we can guarantee that it will not fade.
Q4: How can I visit your company?
A4: You can fly to Xiamen GaoQi Airport, and we will pick you up. It is only 0.5 hours by car from the airport to our company. Welcome to visit us!
Q5: What about the after-sales service?
A5: Through emails, pictures, or guest samples to confirm the real cause of the problem. If there is really a product problem, we will redo with no charge.
