ZhongDe Group ; has three production bases in China, which was established in 1995. ZhongDe Co.,Ltd covers more than 900 thousand square meters and has the total fixed assets amount of RMB12000 million with more than 1900 working staffs. The company has more than 400 leading profile extruding production lines and advanced Detection Equipment, and it is capable of producing 170,000 tons of PVC annually. ZhongDe CO., LTD has developed into the largest scale plastic profile enterprises in China through constant hard work and dedication.
Our products has got SGS, ISO9001,ISO14001, OHSAS18001, CE certification etc. Our UPVC export 5000-6000 tons per year, including North Africa, Southeast Asia, North America, North Asia and other countries.Zhongde products successfully won the Beijing Olympic venues construction products. At present, Zhongde products occupy 40% of Chinese construction materials market, and have been exported to more than 40 countries and regions in North America, South America, Africa, Asia, the Middle East, etc
Zhongde upvc profiles ranks TOP 5 in the same industry in China, Winning the bid of 2008 Beijing Olympic Games designated building profile. Passed ISO9001,ISO14001,CE certification and so on.
Zhongde UPVC Profiles Details:
Casement Series:60mm/66mm/70mm
Sliding Series:50mm/60mm/75mm/80mm/88mm/96mm/105mm/110mm
Wall Thickness:1.7mm/1.8mm/2.0mm/2.2mm/2.5mm/2.8mm
All products are comply with Europe Standards and Chinese Standards, All profiles are Lead-Free products, anti-UV surface, Co-extruded with rubber together. All products adapt to extreme climate, weather resistant, heat preservation, energy saving, green products.
Upvc colored profiles include ASA single&double side colored, Full body colored, Laminated profiles.
Description:
(1). Can OEM upvc products
(2). Package: proctect film on the products surface, plastic package inside and Nylon package outside
(3). Delivery time:8 days for 10 tons, 12 days for 20 tons
(4). All products comply with Europen Standards and Chinese National Standards
(5). UV stability and efficient thermails insulations
(6).All products are lead-free profiles

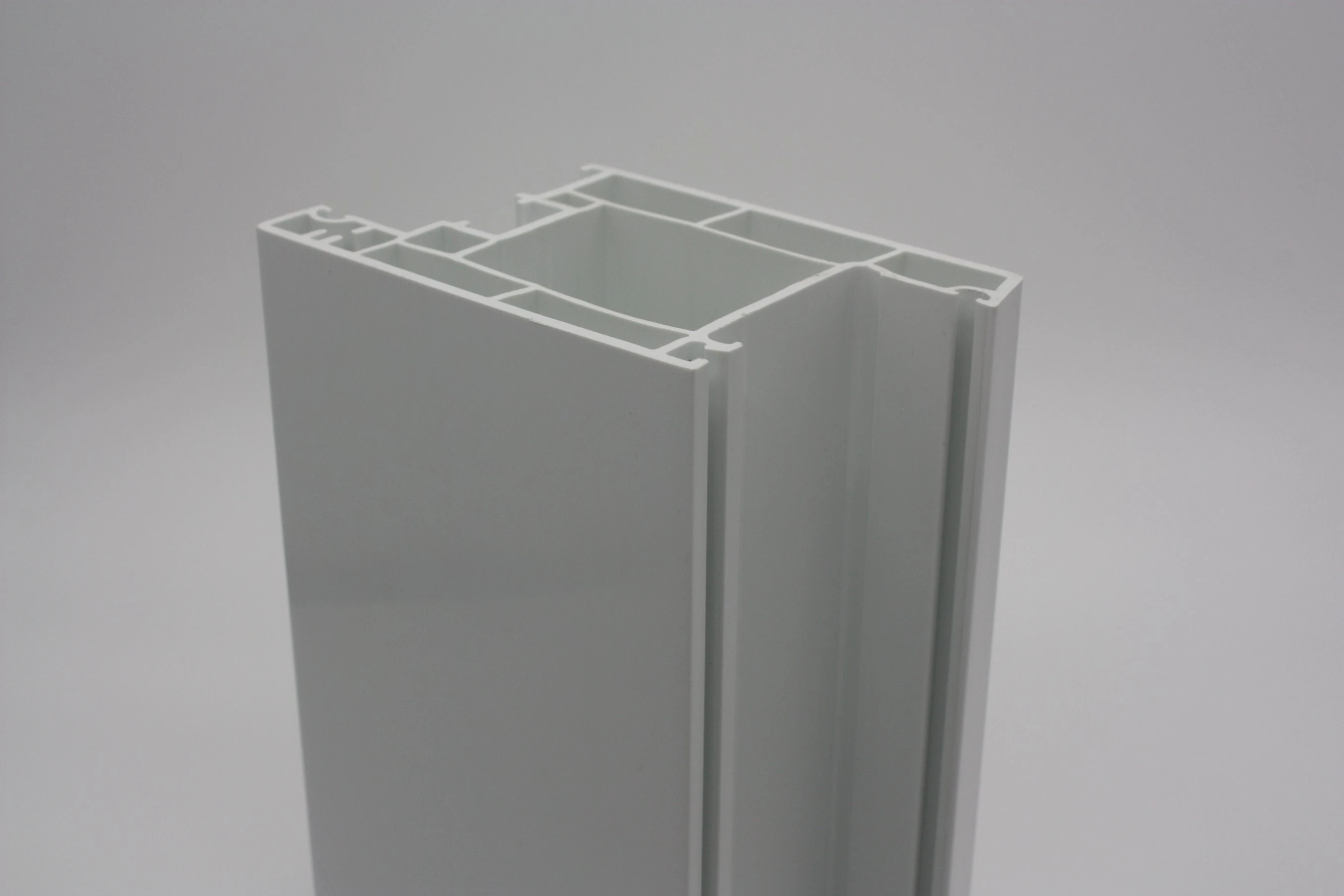

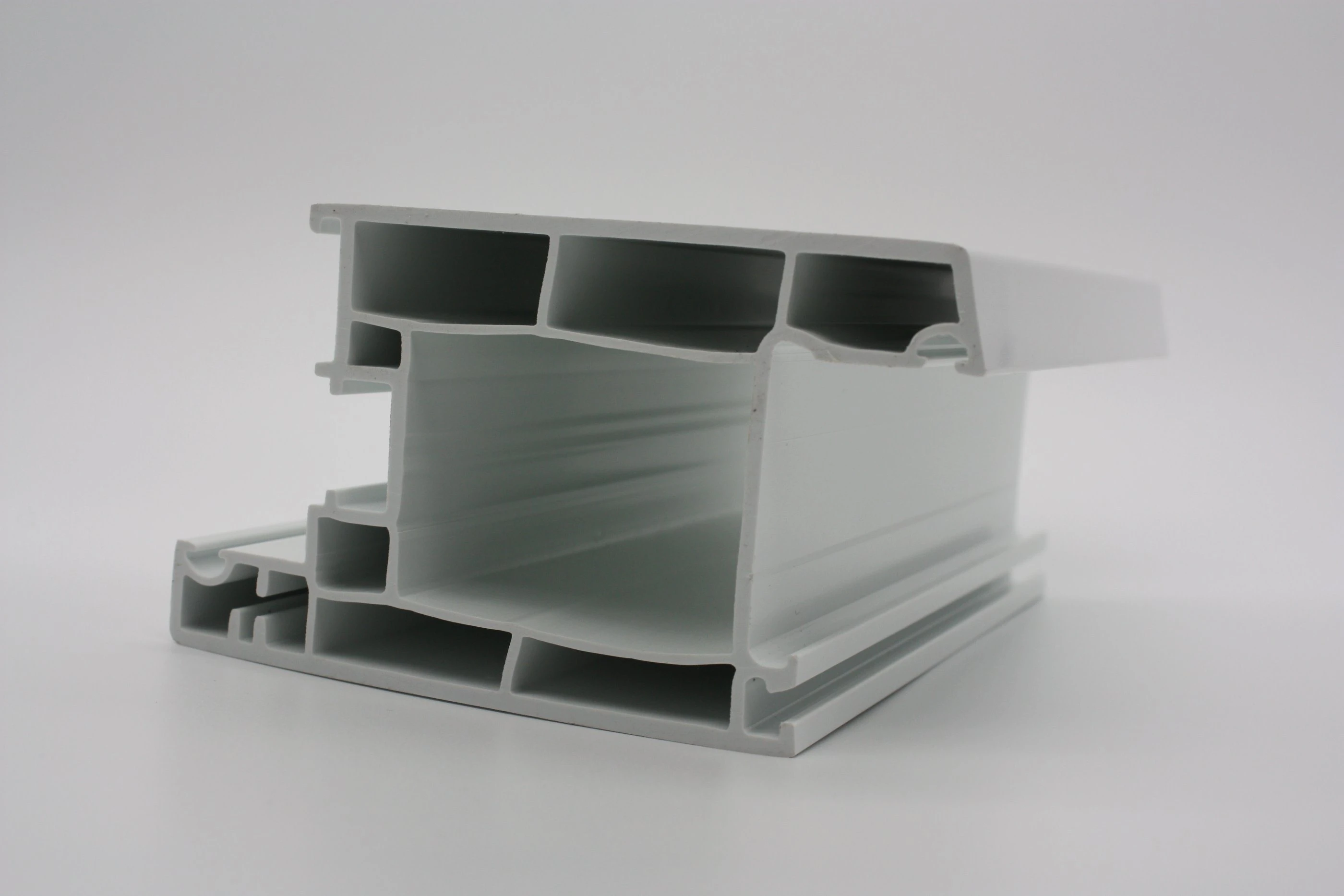

1.Casement series(Thickness 2.0mm,2.2mm, 2.5mm, 2.8mm)
60mm 66mm 70mm for casement
All frame,mullion, sash, glazing beads can co-extrusion with rubber
2.Sliding series(Thickness 2.0mm,2.2mm, 2.5mm, 2.8mm,3.0mm)
60mm,75mm,80mm,88mm,92mm,105mm,110mm
All frame,mullion, sash, glazing beads can co-extrusion with rubber
SICHUAN ZHONGDE PLASTIC-STEEL PROFILES CO.,LTD.
Zhongde Products, Foucs On Your Better Life
ARTHUR YAN
GENERAL MANAGER
Our products has got SGS, ISO9001,ISO14001, OHSAS18001, CE certification etc. Our UPVC export 5000-6000 tons per year, including North Africa, Southeast Asia, North America, North Asia and other countries.Zhongde products successfully won the Beijing Olympic venues construction products. At present, Zhongde products occupy 40% of Chinese construction materials market, and have been exported to more than 40 countries and regions in North America, South America, Africa, Asia, the Middle East, etc
Zhongde upvc profiles ranks TOP 5 in the same industry in China, Winning the bid of 2008 Beijing Olympic Games designated building profile. Passed ISO9001,ISO14001,CE certification and so on.
Zhongde UPVC Profiles Details:
Casement Series:60mm/66mm/70mm
Sliding Series:50mm/60mm/75mm/80mm/88mm/96mm/105mm/110mm
Wall Thickness:1.7mm/1.8mm/2.0mm/2.2mm/2.5mm/2.8mm
All products are comply with Europe Standards and Chinese Standards, All profiles are Lead-Free products, anti-UV surface, Co-extruded with rubber together. All products adapt to extreme climate, weather resistant, heat preservation, energy saving, green products.
Upvc colored profiles include ASA single&double side colored, Full body colored, Laminated profiles.
| PRODUCTS NAME | ZHONGDE UPVC PROFILES |
| CASEMENT SERIES | 60/66/70 SERIES FOR CASEMENT WINDOOR |
| SLIDING SERIES | 50/60/75/80/88/105 SERIES FOR SLIDING WINDOOR |
| COLOR | BLUE WHITE/CLEAN WHITE/MILK WHITE/GRAY/BLACK/BROWN |
| RUBBER | CO-EXTRUDED WITH PROFILES |
| THICKNESS | 1.8/2.0/2.2/2.5/2.8/3.0MM |
| CHAMBER | 3-7 CHAMBERS |
| STANDARDS | CE/SGS/ISO9001 |
| Products Advantages: Good Quality Best Price UPVC Window Profile: (1)Good Water Sealing Property for extruded pvc plastic profile With rain-proof plate, and grooves and poles water drainage, doors and windows can isolate rain to outdoors completely. (2)Aging Resisting about extruded pvc plastic profile Adopting imported improver, and with ultraviolet-radiation-proof absorbent, plastic doors and windows remain the same color and without aging under burning sun, heavy rain, dryness, and wetness from minus 30 degrees to 70 degrees. (3)Fire Proof Property about extruded pvc plastic profile The plastic does not self-ignite, not support combustion, and can self-extinguish. (4)Air-tightness There are sealed strips on the gaps of joints, which can save energy. (5)Easy Maintained The PVC profiles will not be influenced by dust, cement, and agglutinant, etc. They can be cleaned by any cleaning agents. |
| No | Testing them | Technical requirement | Testing result |
| 1 | Status after 150ºC heating | No bubbles,cracks and pitting | passed |
| 2 | Vicat softening temperature(B50)ºC | ≥75 | 81.0 |
| 3 | Bending modulus of elasticity(Mpa) | ≥2200 | 2.39*103 |
| 4 | Tensile-impact strength(KJ/M2) | ≥600 | 652 |
| 5 | Charpy notched impact strength | ≥20 | 21.8 |
| 6 | Welding angle mean stress | ≥35 | 47.1 |
| 7 | Welding angle min.stress | ≥30 | 42.1 |
| 8 | Water tightness | 250-350 | Passed |
| 8 | transmittance | K=1.0w/(m2.k) | passed |
| 9 | Air permeability | 1.0≥q1≥0.5 3.0≥q2≥1.5 | passed |
| 10 | acoustics | Rw+Ctr=31dB | passed |
| 11 | Window frame welding strength | ≥3500N | Passed |
| 12 | Window sash welding strength | ≥4000N | Passed |
Description:
(1). Can OEM upvc products
(2). Package: proctect film on the products surface, plastic package inside and Nylon package outside
(3). Delivery time:8 days for 10 tons, 12 days for 20 tons
(4). All products comply with Europen Standards and Chinese National Standards
(5). UV stability and efficient thermails insulations
(6).All products are lead-free profiles
1.Casement series(Thickness 2.0mm,2.2mm, 2.5mm, 2.8mm)
60mm 66mm 70mm for casement
All frame,mullion, sash, glazing beads can co-extrusion with rubber
2.Sliding series(Thickness 2.0mm,2.2mm, 2.5mm, 2.8mm,3.0mm)
60mm,75mm,80mm,88mm,92mm,105mm,110mm
All frame,mullion, sash, glazing beads can co-extrusion with rubber
Sample Contruction Building:
SICHUAN ZHONGDE PLASTIC-STEEL PROFILES CO.,LTD.
Zhongde Products, Foucs On Your Better Life
ARTHUR YAN
GENERAL MANAGER
